Control4Energy
Standardized solution for PV Energy Management in residential and commercial buildings , consumption prioritization
![C4E001_F02_400 C4E001_F02_400](/user/pages/05.home-english/C4E001_F02_400.png)
- Plug&Play product that enables users to efficiently and automatically manage the energy produced by a domestic or
commercial photovoltaic power plant installed in the user's premises.
- Installation by common electrical installation companies - only the control unit and power supply will be mounted in
the house switchboard and the loads electrical appliances we want to control typically a boiler, electric heater heat pump,
electric car charger wallbox will be connected to the terminals according to the attached installation instructions.
- User settings of the service screen naming of circuits and recommended order of switching on and off of loads appliances
and naming of loads and prioritization order of switching on and off.
- Automatic operation - Control 4 Energy ensures the consumption of the maximum energy produced from the PV plant in the building in which it is installed in such a way that according to the user defined order of switching on and off loads these
loads switch on and off it means that it modulates the load The user sets not only the order according to his personal
priorities of comfort or economy but also the limits at which the loads are switched on or off.
- Prevention of overflows of energy produced by the PV plant into the network, maximum of produced energy is consumed
directly in the building.
- Direct communication with inverters
- Graphs and monitoring graphs of produced energy are available to the end user.
Technical data
Single phase:
- Xantrex - hybrid
- Victron – hybrid
Three phase:
- GoodWe – hybrid
- Solax – hybrid
- Huawei - AC
- Growatt - hybrid
(another inverter brands and devices integration possible based on real orders)

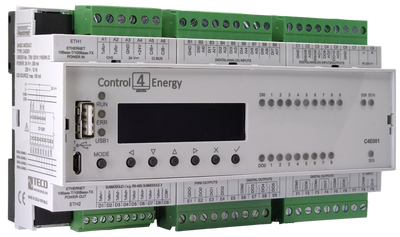

Controller Control4Energy Optimum C4E001 is a OEM version of CP-2091 produced by Czech manufacturer, developed for control of solar energy overflow and prioritization of consumtion.
Controllers are equipped by:
- 8x multiuse inputs, each one is configurable as analog inputs or binary digital contact
- 2x multiuse digital outputs (24V DC) /analog outputs (0-10V)
- 1x digital input 230 V AC,
- 3x digital outputs 24 V 0,5 A with optional PWM function
- 3x independent relay outputs 230 V AC/5A
- 3x independent relay outputs 230 V A C/16A
Another interfaces:
- 2x Ethernet,
- up to 4x serial channels
Vizualization

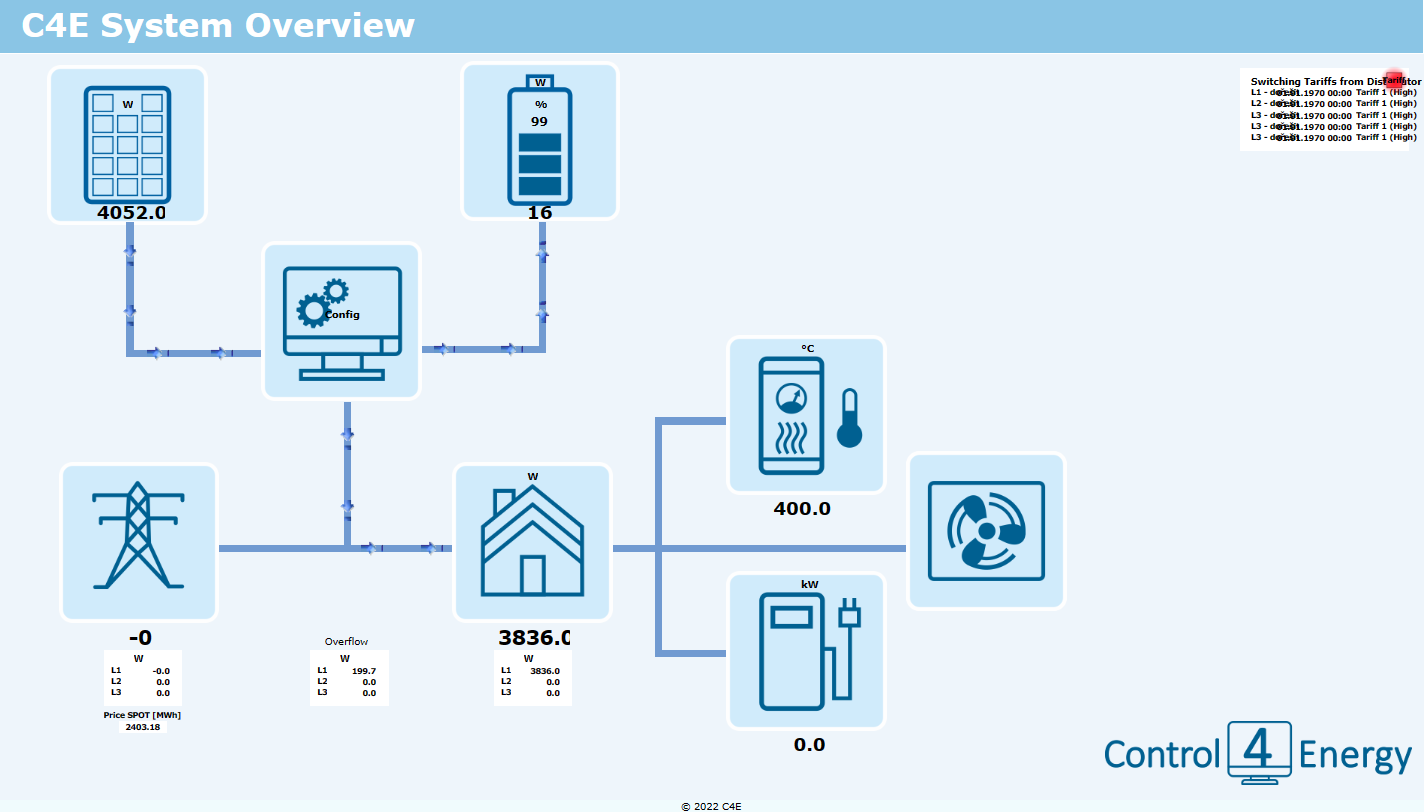

Main Overview Screen
![New_main_overview_EN New_main_overview_EN](/user/pages/05.home-english/New_main_overview_EN.png)

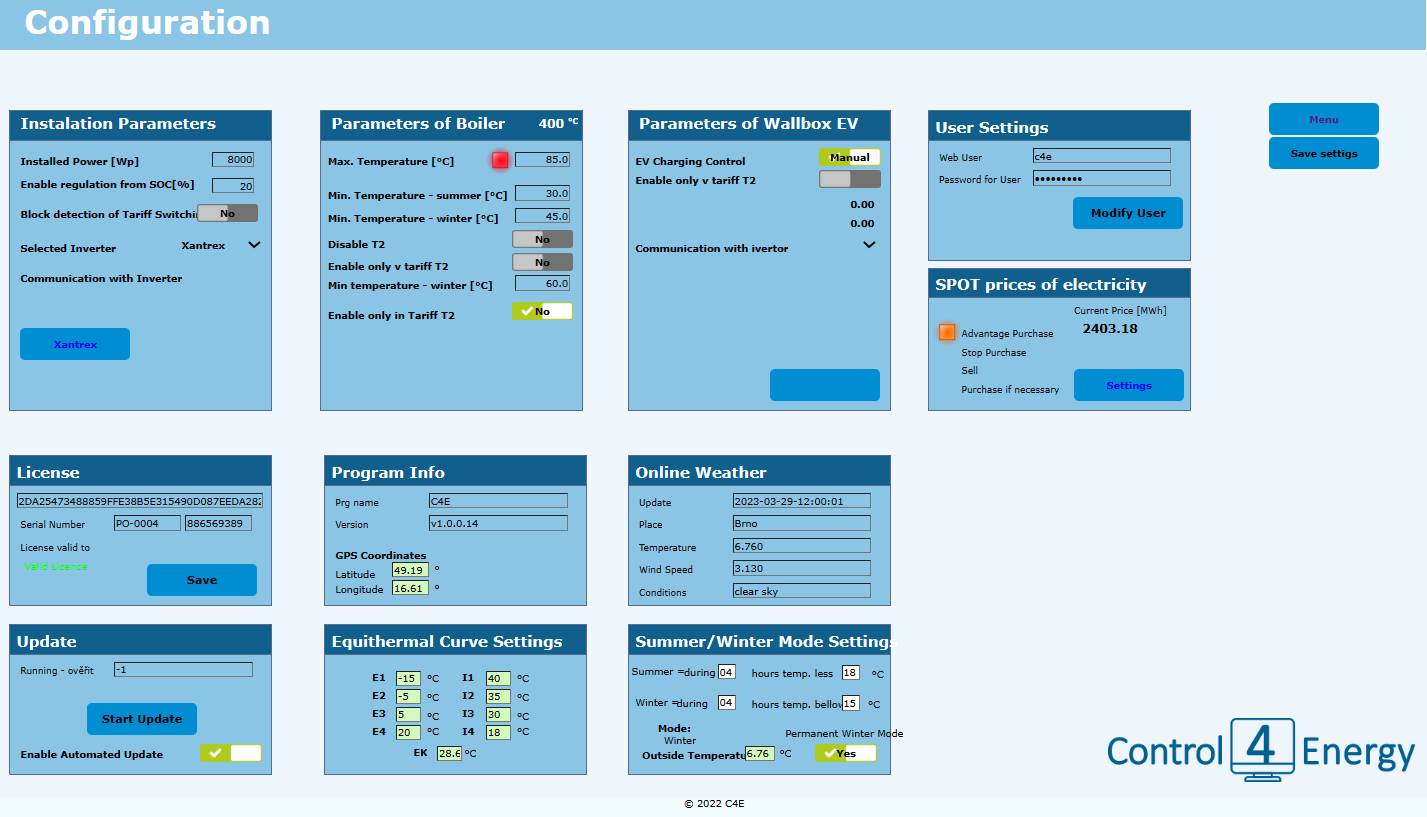

Configuration Screen
![New_configuration_EN New_configuration_EN](/user/pages/05.home-english/New_configuration_EN.png)

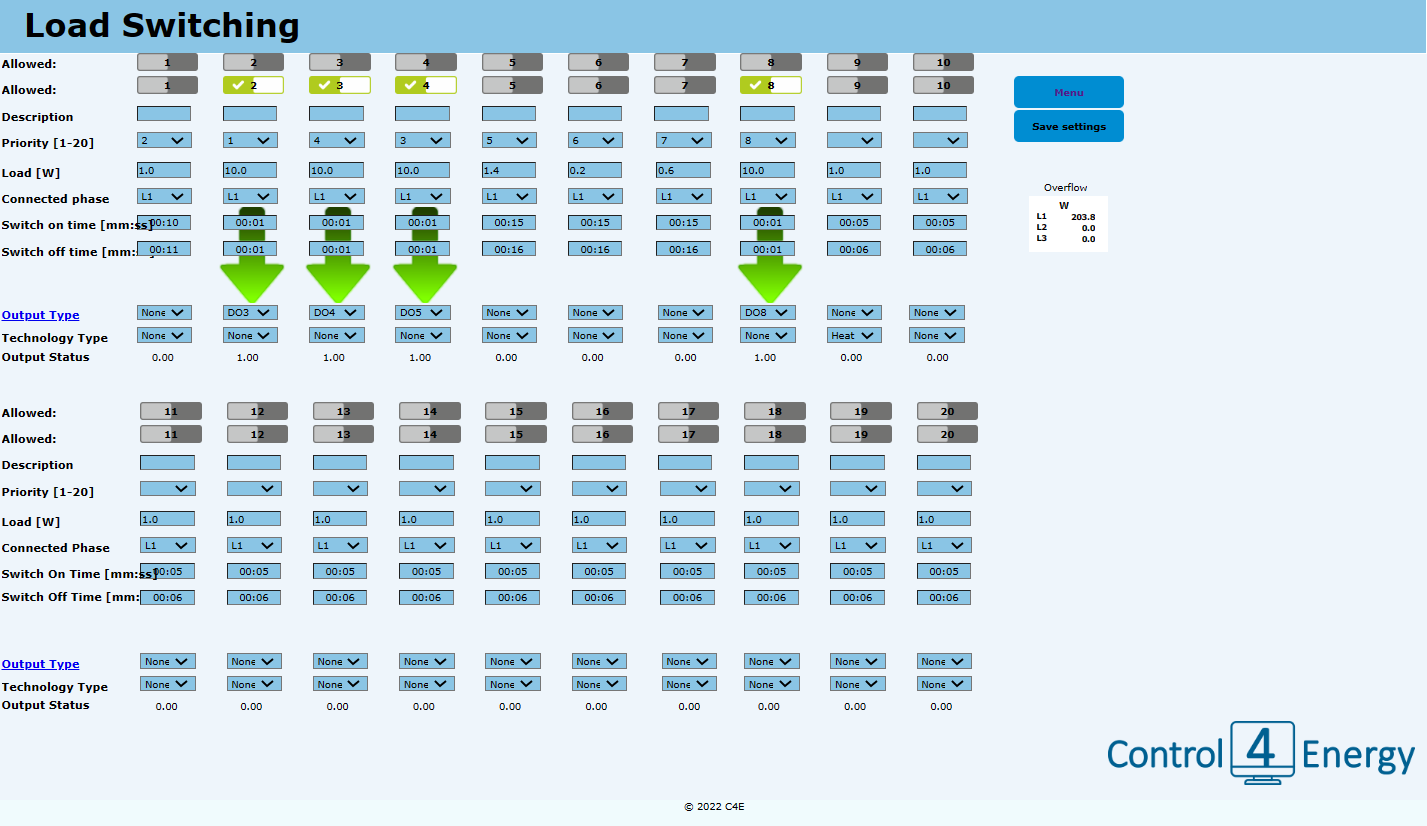

Load Settings Screen
![New_Load_Switching_EN New_Load_Switching_EN](/user/pages/05.home-english/New_Load_Switching_EN.png)
Download
User Guide
Control4Energy-Optimum-User-Manual-V04_ENG.pdf
Datasheet
Datasheet_C4E001_Optimum_cs_V00.pdf
Contact
![Automation%20Solutions_logo Automation%20Solutions_logo](/user/pages/05.home-english/Automation Solutions_logo.jpg)
Automation Solutions s.r.o.
Wágnerova 1126/11c, Maloměřice, 614 00 Brno, Czech Republic
Phone.: +420 775 355 454
E-mail: obchod@automationsolutions.cz
Distribution, orders
Product Control4Energy is distributed by company Teco a.s. - www.tecomat.cz, orders can be sent directly to teco@tecomat.cz.
